Product center >> Cartridge sealed industrial pumps

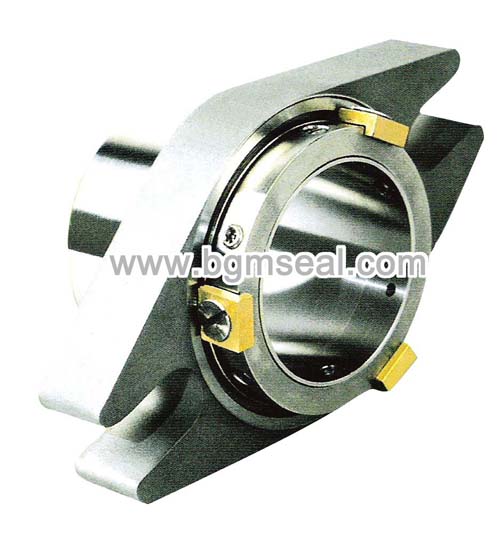

318i,518Mechanical seal

Structure:Single seal,balanced,independent of direction of rotation,cartridge
                   seal,according  work condition to design flushing-hole,conform to API610、API682.
Application:Crystallization、grain、weak causticity medium,can instead of parking seal.
Operating limits:Pressure≤2.5MPa Temperature=- 30～220℃   speed≤35m/s
