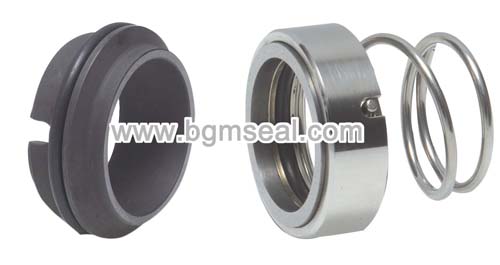

M37G,M32 Mechanical seal

Structure:Single seal,Unbalanced,dependent of direction of rotation,conical spring
               drived by both side hook,Separate.
               (Please confirmTemperaturehe rotate direction of axis or sping when you
                 order goods.)
Application:water pump sewage pump,oil circulating pump,chemical industry pump.
Operating limits:Pressure≤1.0MPa Temperature=- 30～180℃   speed≤15m/s
