Product center >> General-purpose industrial pump seal

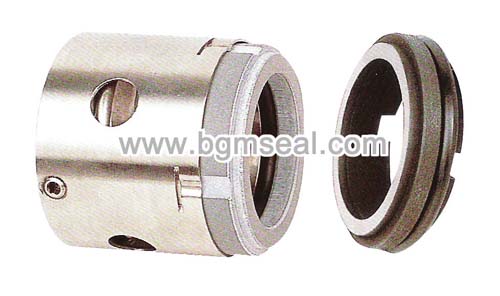

G104 Mechanical seal

Structure:Single seal,Unbalanced,independent of direction of rotation,lug drive,Separate.
                   International standard.
Application:water pump sewage pump,oil circulating pump,chemical industry pump.
Operating limits:Pressure≤0.8MPa Temperature=- 30～120℃   speed≤10m/s
