Product center >> Sealing ring materials

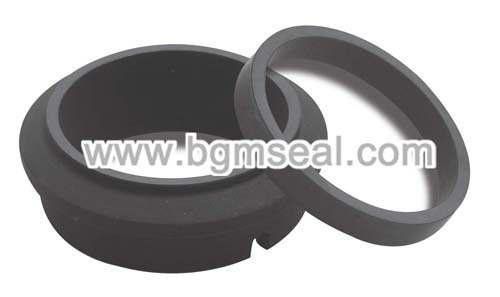

Carbon-graphite(MK)

The Carbon-graphite materials have strong resistance, self-lubricity, high coefficient of heat conductivity small expansion coefficient, low frictional factor. Can made into various sharp sealing ring, bearing, friction disk, it is relatively ideal friction material of mechanical seals
Physical character parameter of carbon

Specialty

type

Density
(g/cm3)

Tensile strength
(MPa)

Compression strength
(MPa)

Shore Hardness
(HS)

Indicated
Porosity
(%)

temperature
(oC)
碳石墨
ethoxyline resin
M106H
1.75
65
200
85
<1
250
M120H
1.7
60
180
80
<1
250
Furan Resin
M106K
1.75
67
200
90
<1
250
M120H
1.7
62
180
85
<1
250
Bakelite resin
M106F
1.75
60
200
85
<1
250
M120F
1.7
55
180
80
<1
250
Antimony carbon
M106D
2.3
65
220
90
<1.5
400
M120D
2.3
60
220
90
<1.5
400
M254D
2.3
55
210
65
<1.5
450
